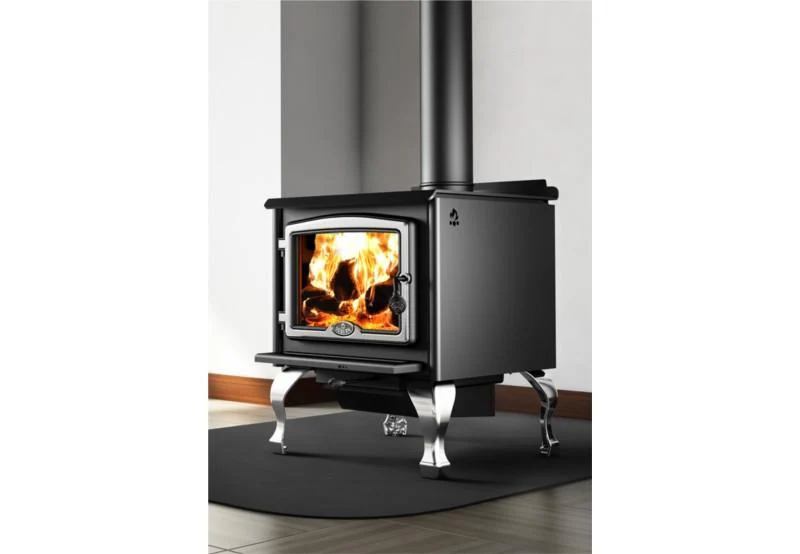

Osburn 2300 Freestanding Woodheater

The 2300 model, one of our new-generation wood stoves, comes from the drawing board to you, backed by the advanced technology of Solid-Edge, a 3-D software design program. It features an aesthetically pleasing cast-iron door complete with the Osburn logo, hidden latch and hinges, and extra-large glass window.

Each appliance is equipped with a premium quality blower. The secondary air tubes and baffle ensure combustion of the highest quality.

Features:

• Your choice of Model - Pedestal or Legs
• Easy-to-access ash drawer
• Controlled Combustion
• Glass air-wash system
• Blower Included
• Firebox lined with refractory bricks for better heat distribution
• Stainless-steel secondary-air system improving gas combustion
• Nickel and Brushed Nickel Options Available

Specifications

Optimum Efficiency	61%
Average Particulate Emissions	1.3 g/kg
Steel Thickness - Top	8mm
Maximum Log Length	516mm
Heating Capacity	up to 260 Square Metres
Fuel Type	Dry Cordwood
Door Materials	Glass with Cast Iron Frame
Glass Type	Ceramic Glass
Glass Air-Wash System	Yes
Firebox	Lined with Refractory Bricks
Easy-to-Access Ash Drawer	Included
Model	Pedestal or Legs



Dimensions:

653mm (W) x 886mm (D) x 853mm (H)

Firebox: 468mm (W) x 541mm (D) x 378mm (H)

Weight: 204kg



Manuals:

Osburn Product Brochure.pdf

Osburn 2300 Specification Sheet.pdf

Osburn 2300 Operation and Installation Manual.pdf
